Steam Systems

Steam Systems designed and build by Normand and Thomson

Normand and Thomson can offer a complete mechanical design of any steam system, supports, and inline equipment which your industry requires. Design is carried out in accordance with BS EN 13480 metallic industrial piping or ASME B3.1 Code for Pressure Piping. The system will be designed to take account of all thermal expansion, pipe supports, anchors points, bellows or expansion loops required. We can provide a full stress analysis of the system and full certification in line with Pressure Equipment Directive (PED) can be supplied if required.

We have designed and installed steam pipe work from 0.5” up to 30” for various industries. We can offer a complete package from site visit, design, CAD drawings, material procurement, workshop fabrication, NDT, site install, pressure test, with completion of the system carried out bbyb our thermal insulation engineers.

Site installation procedures would include risk assessments, method statements and lift plans for heavier items which require crane work. At Normand and Thomson we own and operate two mobile cranes, 1 x 35 ton and 1 x 25 ton, all controlled by our own trained personnel.

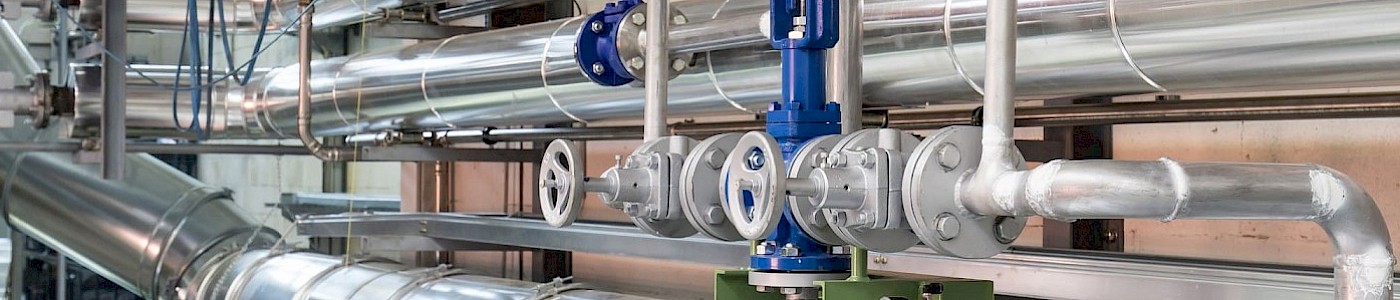

Industrial steam piping and accompanying in-line components can be manufactured from carbon steel or stainless steel. Normand and Thomson can specify and supply all in-line components, fittings, valves, and other devices that sense and control the pressure, flow rate and temperature of the steam. Piping system designs are documented in process and instrumentation diagrams (P&IDs) which are developed by our engineers.

On completion our QA department will issue a standard documentation package which will include material certificates, welding procedures and welders' qualifications, NDT reports, and all pressure test certificates carried out in the contract. We can also supply customer specific documentation packages.

For more information on any of the above products please contact our technical sales team who will be happy to discuss and assist you with your requirements.
